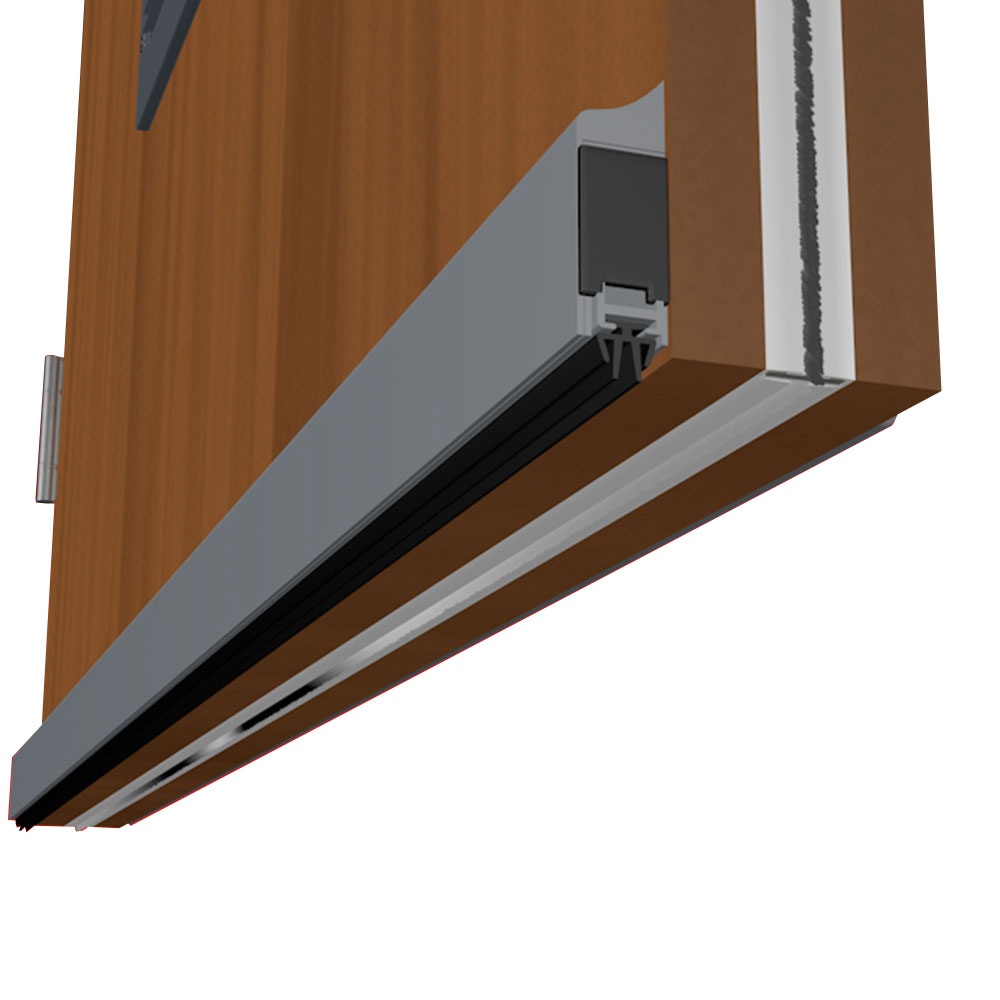

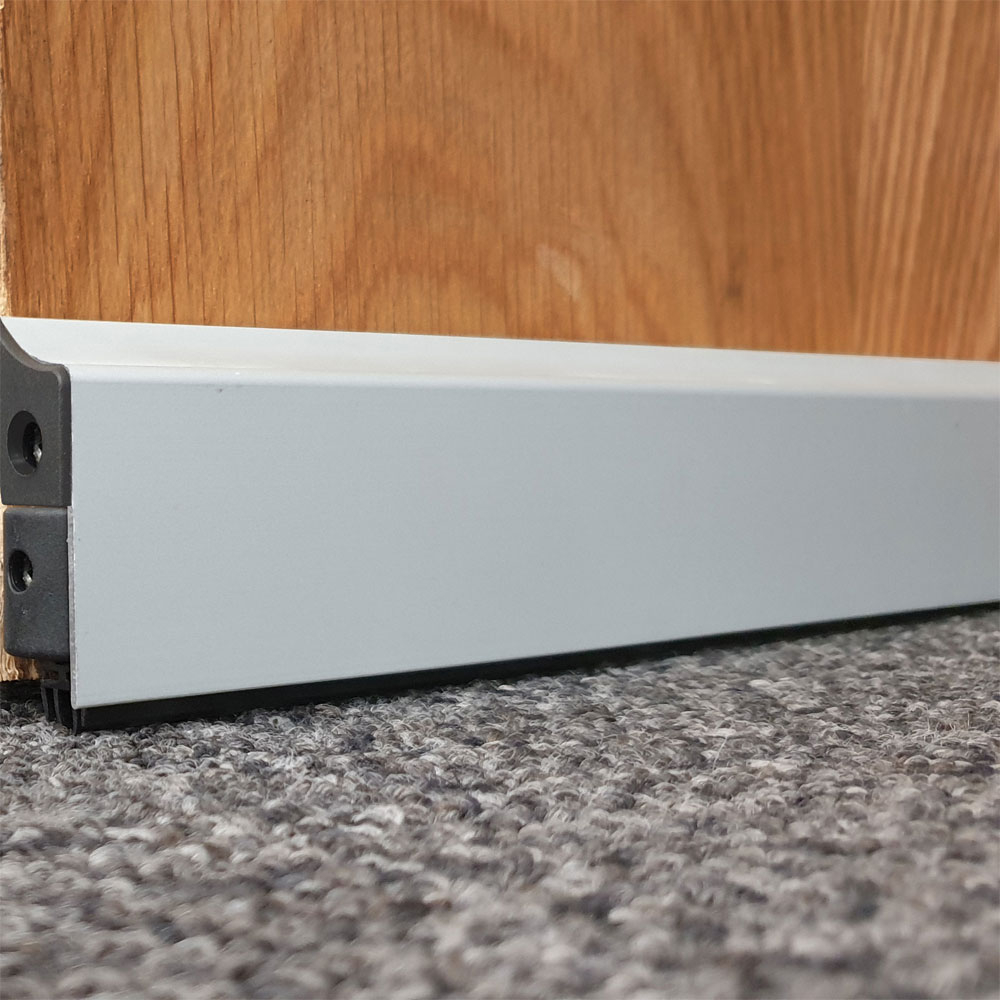

Appliqué 37 Surface-Mounted Drop Down Seal
This high-performance seal is designed to stop smoke from passing under a fire door as well as providing an effective barrier against fire, the outside climate, noise, light and insects.
More Information
A drop down seal is activated once the door is closed. This means the door threshold remains clear without the need for a high fixed threshold. It’s the ideal seal to meet document part E and part M of UK building regulations where disability, access and energy conservation is concerned.

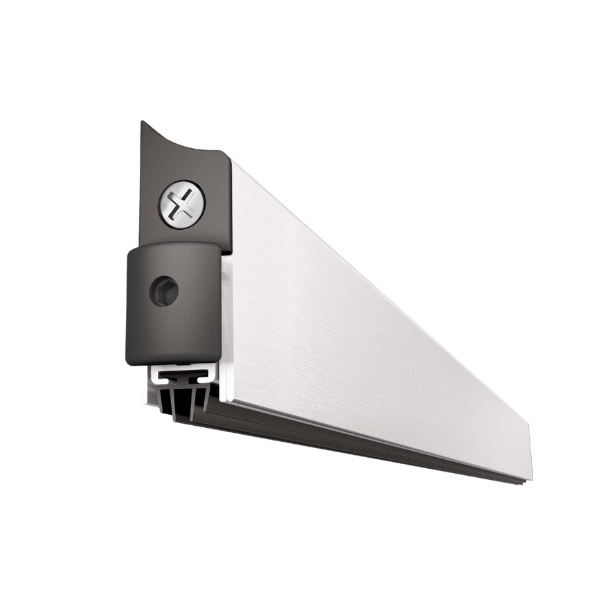

The Applique features a satin anodised aluminium finish with galvanised steel flat springs and reinforced actuators and is endurance-tested to 200,000 cycles with a 14mm maximum drop.
The seals are acoustically tested in accordance with BS EN ISO 140-3:1995 and achieved a rating of up to 29dB Rw, fire tested to BS476: Part 20/22: 1987 to 60 minutes and smoke tested to BS EN 1634-3:2004.

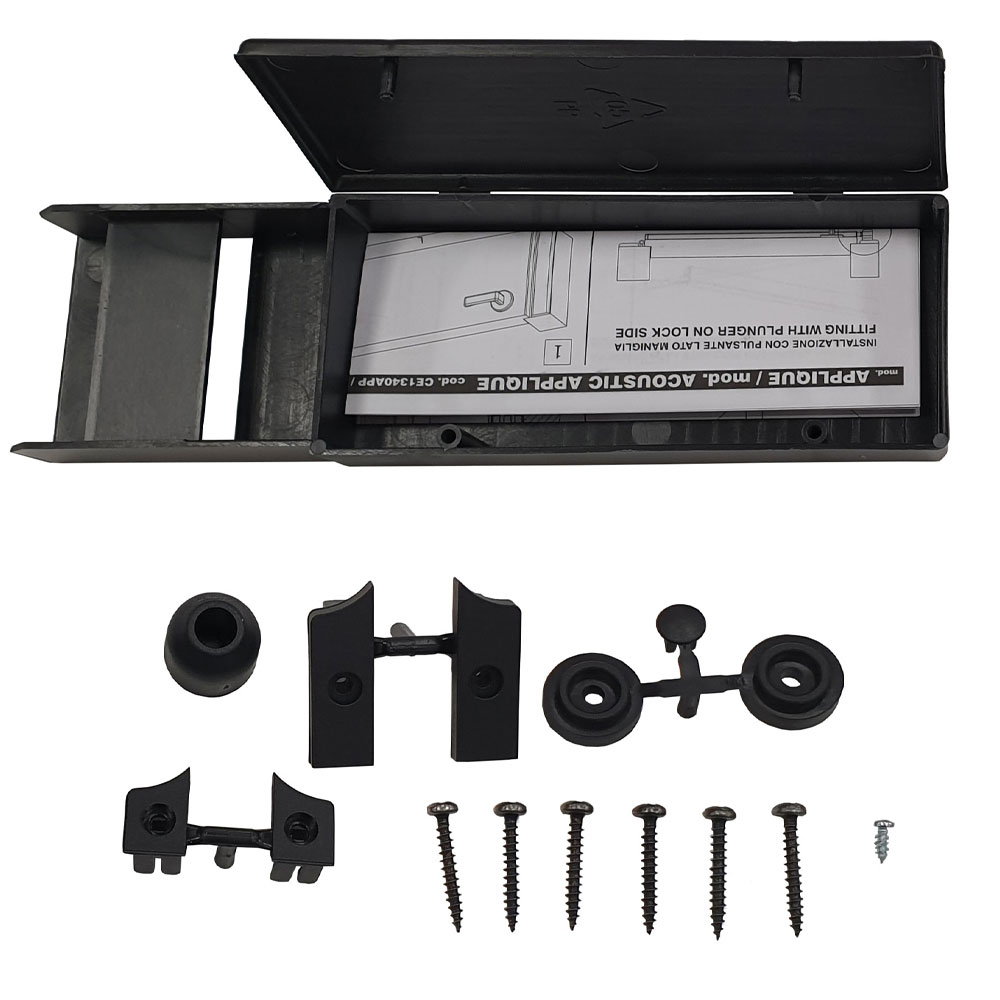

This easy-to-fit seal is a versatile solution that comes with pre-fitted screws for a quick and cost-effective installation and can be shortened or cut down if required by 150mm.
Length
430-1330mm (CAN BE TRIMMED UP TO 150MM)

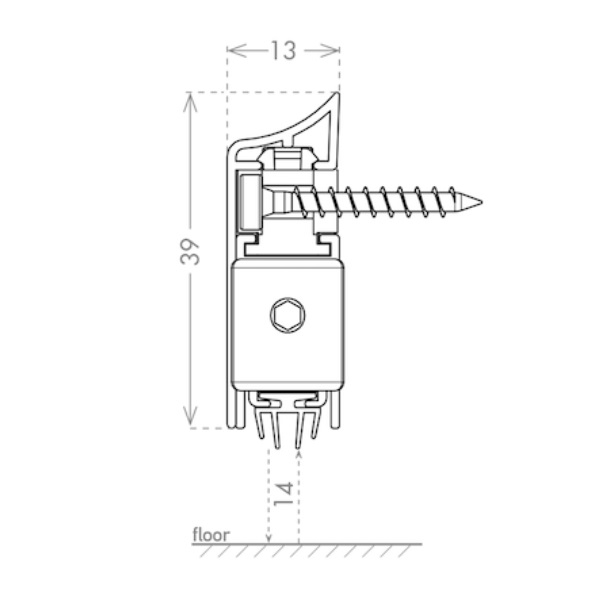

Maximum Drop
14mm
Acoustic Rating
Up to 29dB Rw
Fire Rating
BS476 Part 20/22: 1987 to 60 minutes
Fire Certification
Certifire CF5995
Fire Test
BS EN 1634-1:2014
Smoke Test
BS EN 1634-3:2004
Suitable For
Fire, smoke and acoustic doors
Guarantee
2 years
Technical specifications
Media
Product videos
How to install a Door Bottom Seal on the Lock side of a door
This video will show you how to install a ASDB on the Lock side of a door
How to install a Door Bottom Seal on the Hinge side of a door
This video will show you how to install a ASDB on the hinge side of a door
Documentation
Datasheets & downloads
Full documentation for the product can be downloaded in this section, including detailed Brochure page
Product Data Sheet
Certifire Certificate: 5995
Smoke Leakage Test Report
CCE SUPERIOR (TS21) SMOKE LEAKAGE TEST REPORT
