Varijig Tenon & Grooving Jig

Varijig Tenon & Grooving Jig

Stock Code: VJS/TG/JIG
1-2 working days
£124.82 (exc VAT) per 1
Quantity: - +

Descriptions

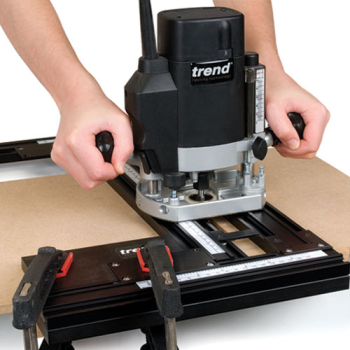

Working length based on 30 mm guide bush and 12 mm diameter cutter being used:-||Max. without end stops used=412 mm|Max. with one end stop used=397 mm|Max. with two end stops used=382 mm|Max. working width using end stops* (12mm dia. cutter)= 18 mm|Max. width adjustment depending on router base diameter=70 mm | Allows grooves and tenons to be cut using a router. |Can be used to crosscut boards with a router or circular saw. |Frame is adjustable to allow narrower or wider grooves to be routed. |The max. adjustment is 70mm depending on the diameter of the router base. |The edge of the frame can be used as a guide to trim a panel square using a router. |Two sliding stops to set groove length. |Squaring butt has the facility to accept a spelch block to allow a full-length groove. |Fixing screws are included for this purpose. Working length is 400mm. |Can be used with any plunge router fitted with a guide bush of minimum 8mm projetction.|Router not included. | 4 x Alloy extrusions|4 x Corner brackets|3 x Scales|1 x Squaring butt|2 x Length stops|1 x Hex key

ManufacturerTrend

There are no downloads for this product.
