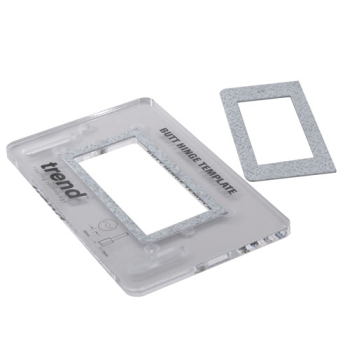

Template butt hinge

Stock Code: TEMP/BH/A
1-2 working days
£55.64 (exc VAT) per 1
Quantity: - +
Size=214 mm x 135 mm x 8 mm|Door thickness min.=34 mm|Door thickness max.=44 mm|Hinge recess length=75 mm|Hinge recess length=100 mm | A routing template that allows a router to create a hinge recess on a door. |Made from clear 8mm thick plastic.|Includes metal templates for 75mm and 100mm butt hinges.|Magnets in template frame to hold templates.|Cuts rounded corners which can be removed with a corner chisel or chisel.|Use on doors from 35mm to 44mm thick.|Requires 12mm diameter cutter and 30mm guide bush.|A user made batten 44mm x 34mm x 450mm is also needed.|Design Reg. No. 00132246-001. | 1 x 75mm hinge template|1 x 100mm hinge template
ManufacturerTrend

There are no downloads for this product.
