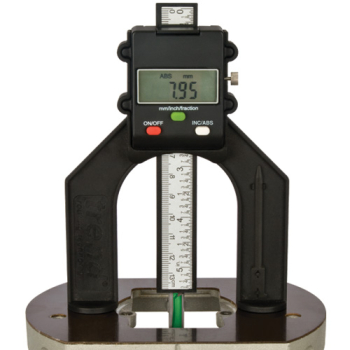

Trend Digital Depth Gauge

Stock Code: GAUGE/D60

1-2 working days

Descriptions

Measuring range=80 mm (3-1/8")|Opening width=60 mm (2-3/8")|Resolution=0.05 mm (0.002")|Accuracy=+/- 0.1 mm (0.004")|Repeatability=+/- 0.1 mm (0.004")|Max. measuring speed=1.5 m/s (60 in/s)|Weight=92g|Voltage=3 volt|ABS mode (Absolute)=Measuring single amounts from Zero|INC mode (Relative)=Measuring from last point|End of life=See below for Environmental Policy link | Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring. |For hand routers, router tables and saw benches.|LCD readout for mm, imperial and fractions with auto shut off 5 mins.|Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).|Self standing with magnetic feet and flat back.|Injection plastic moulding with plastic rule.|60mm wide aperture.|Read-out has relative co-ordinate and absolute function.|Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence.|For UK sale only.|Spare battery available ref. BAT/CR2032/3V. | 1 x 3V CR2032 lithium battery|1 x Small rebate clip

Specifications

Range	80mm
Manufacturer	Trend
