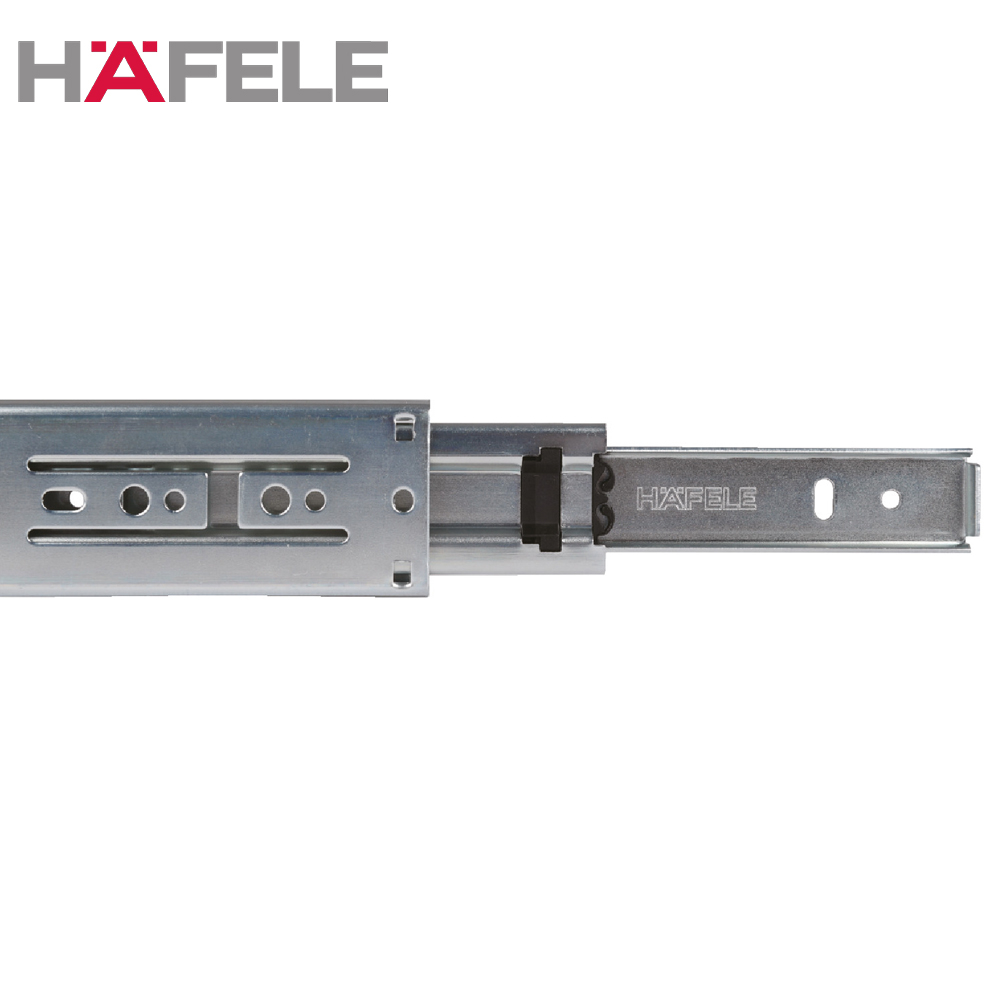

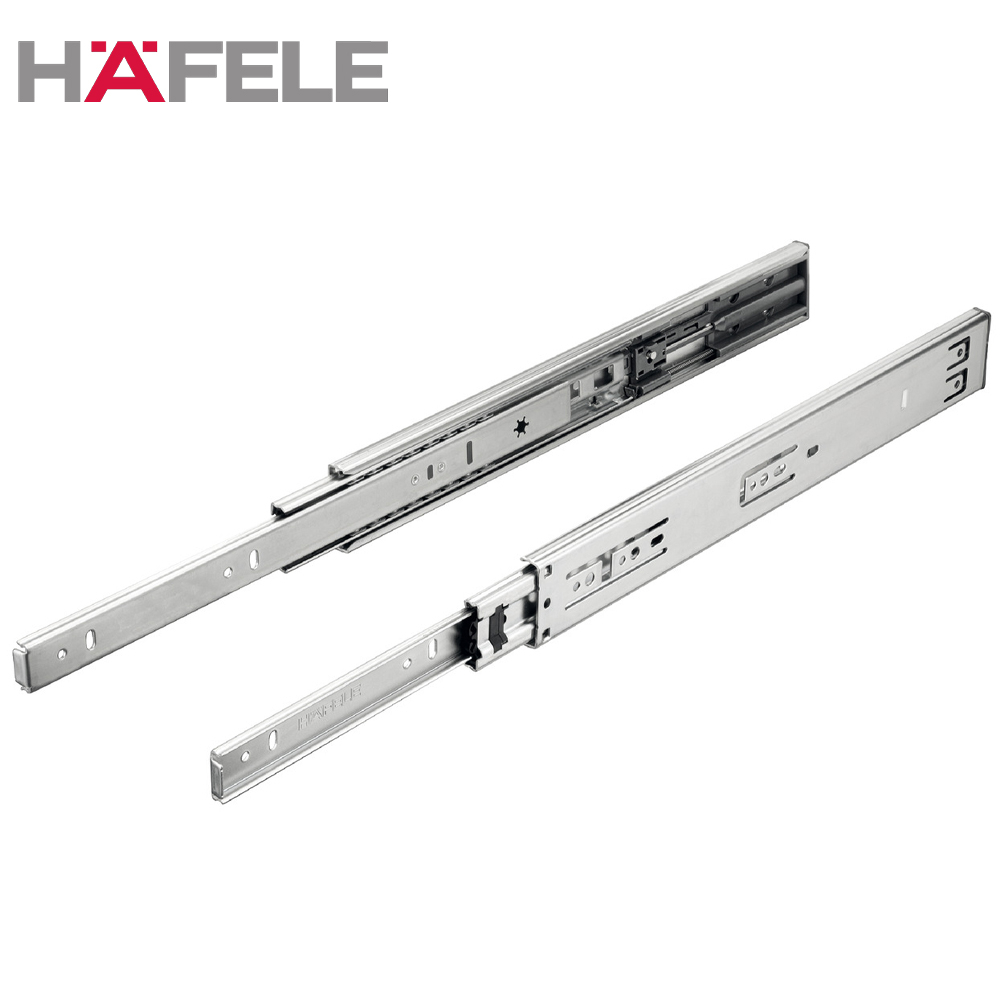

Hafele Matrix Self & Soft Close Full Extension Ball Bearing Drawer Runners (250-650mm)

Hafele Ironmongery

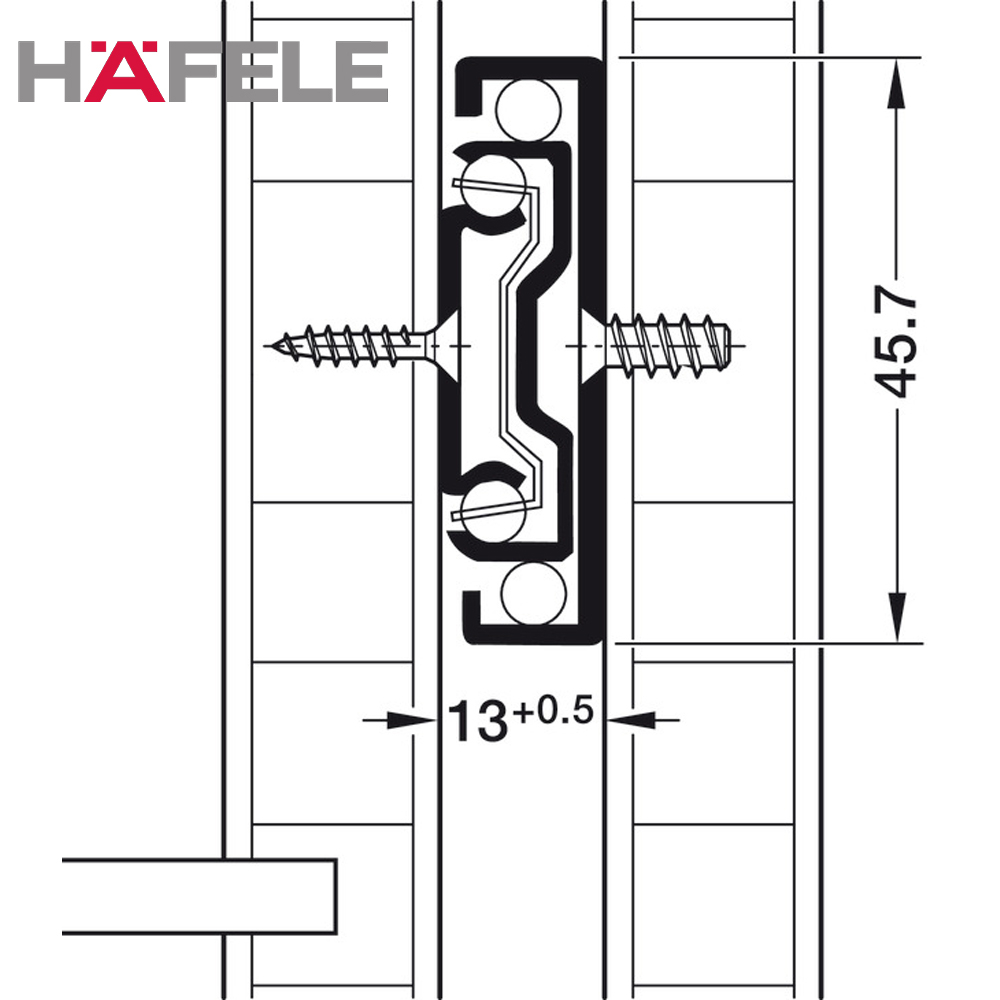

For optimum performance allow between +0.2mm and +0.5mm over the nominal runner thickness, for the runner space

Mounting: Side mounted

Version: With self closing and soft closing mechanisms

Colour/finish: Zinc plated, Zinc plated

Model: BB A30

Type of pull out: Full extension

Area of application: Material thickness 1.2/1.2/1.4 mm

Comfort functions opening/closing: Soft closing mechanism, Self closing mechanism

Material: Steel

Height: 30.00 mm

Installation: Screw fixing

Bearing: Ball bearing
