Hafele

Hafele® Cubicle Ironmongery

ADJUSTABLE GLASS CUBICLE SUPPORT

These fittings can be used in any environment, but they are particularly suitable for situations of heavy use, where floors are cleaned on a continual basis, where floor washing machines are in use or the atmosphere has a high salt content

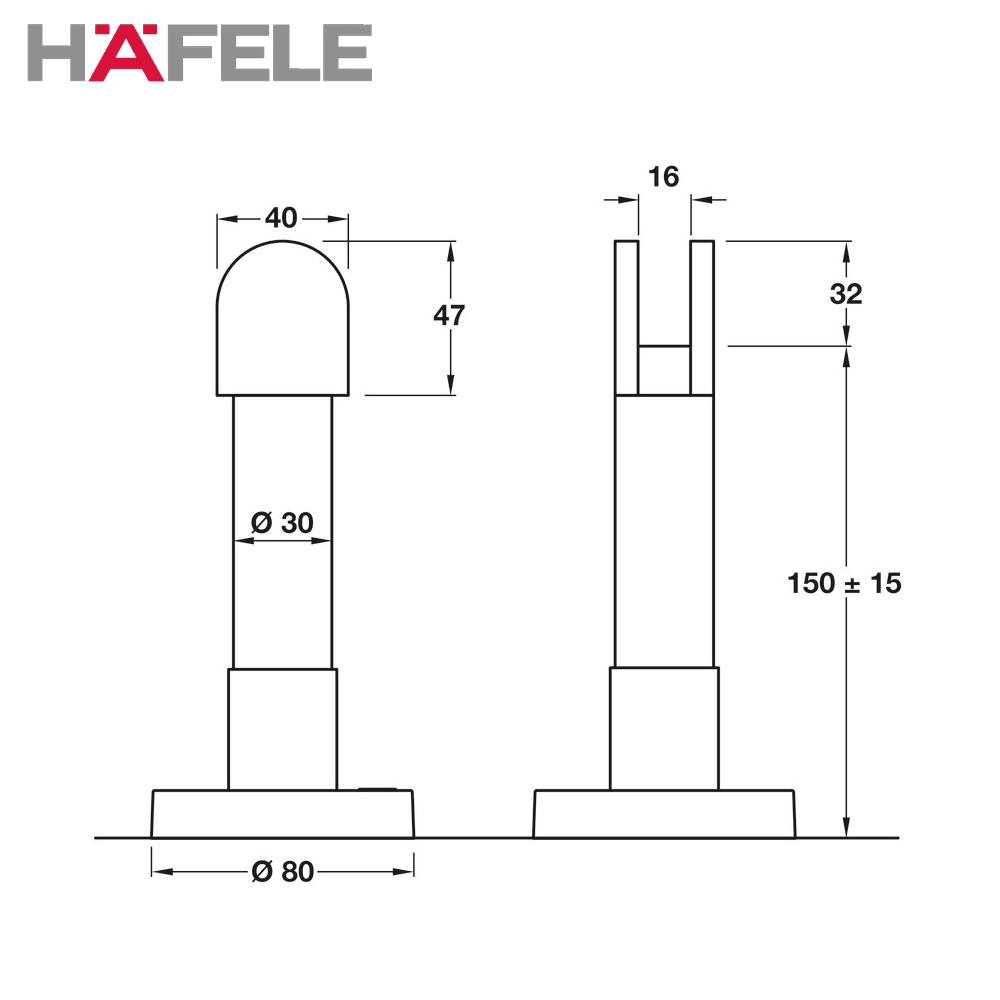

Support for division and fascia panels Height adjustable between 135-165 mm

Finish: Satin

Special technical features:

Support for division and fascia panels Height adjustable between 135-165 mm

Area of application:

10.5-12.5 mm glass partitions

Suitable for:

10.5-12.5 mm glass partitions

Material

Grade 316 L stainless steel

Installation

For fixing through glass

Height

182.00 mm

Diameter

80.00 mm

Unique selling points (USP)

These fittings can be used in any environment, but they are particularly suitable for situations of heavy use, where floors are cleaned on a continual basis, where floor washing machines are in use or the atmosphere has a high salt content

Supplied with

Clear plastic spacers included for laminated glass thickness 10.5-12.5 mm

Supplied with

Clear plastic spacers included for laminated glass thickness 10.5-12.5 mm
