FAS 60 Minute Fire Door Foam 750ml (Gun)

FAS 60 Minute Fire Door Foam 750ml (Gun)

Stock Code: FAS-750G
In Stock
£12.99 (exc VAT) per 1
Quantity Ordered Price
1 - 11 £12.99
12+ £10.64
Quantity: - +

Descriptions

CCPI Assessed · Fire Door Foam

FAS Fire Door Foam 750ml

SKU: FAS-FDF-750G

The UK's only orange fire-rated fire door foam — PU expanding foam tested to seal frame-to-wall gaps on timber fire door assemblies, with up to 60 minutes fire protection.

60 min fire rated 120 min with sealant CCPI 015700188/1227 Certifire CF5839
View All The Foam Range

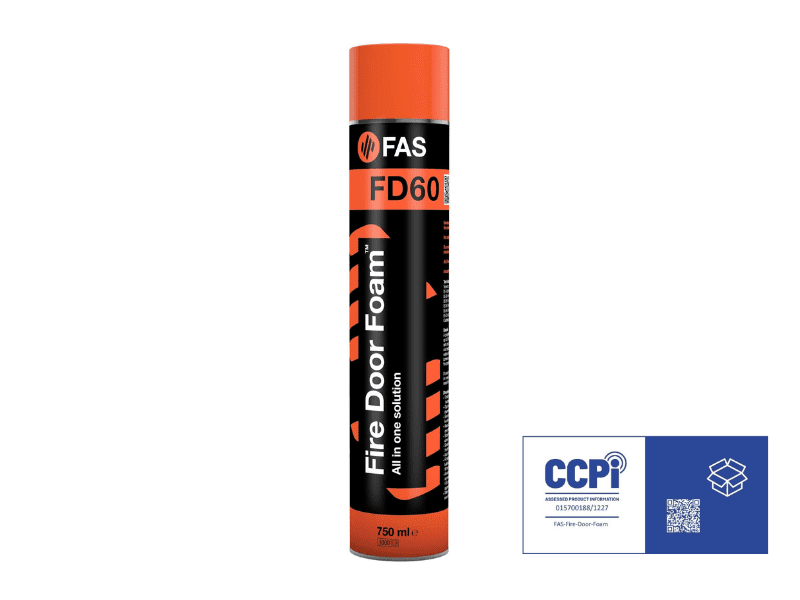

FAS Fire Door Foam 750ml can with CCPI marking
Includes protective gloves
60 min Fire protection
5–30mm Gap size (FD30)
3–4 Doors per 750ml can
60 dB Acoustic reduction (RW)
18 mo Shelf life

Installation Video

Installing 90–120 minute fire doors with FAS Fire Door Foam™ and Fire Door Intumescent Acrylic Sealant.

Why FAS Fire Door Foam?

Fire Door Foam™ replaces mineral fibre wool, mastic, and specialist intumescent packers with a single PU foam designed and tested specifically for fire door frame gaps.

Tested on fire door assemblies for fire, smoke, and acoustic performance. Compatible with standard plastic and timber packers. Suitable for timber fire door frames and screens.

Key Features

  • CCPI Assessed – 015700188/1227
  • No mineral fibre wool or mastic required
  • Compatible with standard plastic and timber packers
  • Fire-rated up to 60 mins (120 mins with FAS Intumescent Acrylic Sealant)
  • Tested with fire-rated timber door sets
  • Sound reduction up to 60 dB RW (depending on doorset)
  • Gaps: 5–30mm (FD30) / 5–25mm (FD60)

Replaces Traditional Methods

  • Mineral fibre wool packing
  • Mastic sealing
  • Specialist intumescent packers

One product, one application — faster installs with documented test evidence for specifiers and building control.

Fire Performance & Certification

Independently tested to UK and European fire door standards — with Certifire and CCPI Assessed status.

Certifire CF5839 CCPI Assessed 30 / 60 / 90 / 120 min
  • Fire tested to 30, 60, 90 and 120 minutes with fire door sets
  • BS 476: Part 20 & 22: 1987
  • BS EN 1634-1: 2014
  • Smoke & leakage: BS EN 1634-3: 2004
  • Acoustic: EN ISO 10140-1 / 10140-2 / 717-1

Click any image to view full size.

Gap sealing between frame and wall
On-site FD60 installation
Foam expansion cross-section
750ml can — CCPI assessed

Product Specifications

SKUFAS-FDF-750G
Volume750ml
ColourOrange (fire door product identifier)
MaterialPU expanding foam
Fire ratingUp to 60 minutes (120 minutes with FAS Fire Door Intumescent Acrylic Sealant)
Gap size5–30mm (FD30) · 5–25mm (FD60)
Coverage3–4 door sets per can
Shelf life18 months unopened, stored 5°C–30°C in cool, dry conditions
IncludedProtective gloves

Maintenance

Inspect in line with the building's maintenance schedule. Record inspections should be carried out by competent individuals.

If the product is damaged or tampered with, remove and reinstall following the installation guidance.

Storage & Disposal

Do not expose to temperatures above 50°C or direct sunlight. Store unopened cans in cool, dry conditions.

Dispose of empty cans per local regulations. See the Material Safety Data Sheet for full guidance.

Downloads

Safety, compliance, and installation documents for FAS Fire Door Foam.

Safety

Material Safety Data Sheet

Compliance

Certifire Certificate Warrington Field Report KIWA Field Report

Installation

Post Installation Checklist FAQ
View All The Foam Range

Product TypeExpanding Foam B1 (FIRE RATED)
ManufacturerFAS
