CCE Superior 60 Rebated 926mm Drop Down Seal 2hr / 48dB

Stock Code: CCE-SUPERIOR60-926
In Stock
£23.56 (exc VAT) per 1
Quantity: - +




In Stock
SKU: CCE-SUPERIOR60-826 · REBATED
CCE
Drop down seal

Superior Automatic Rebated Drop Down Seal 926mm

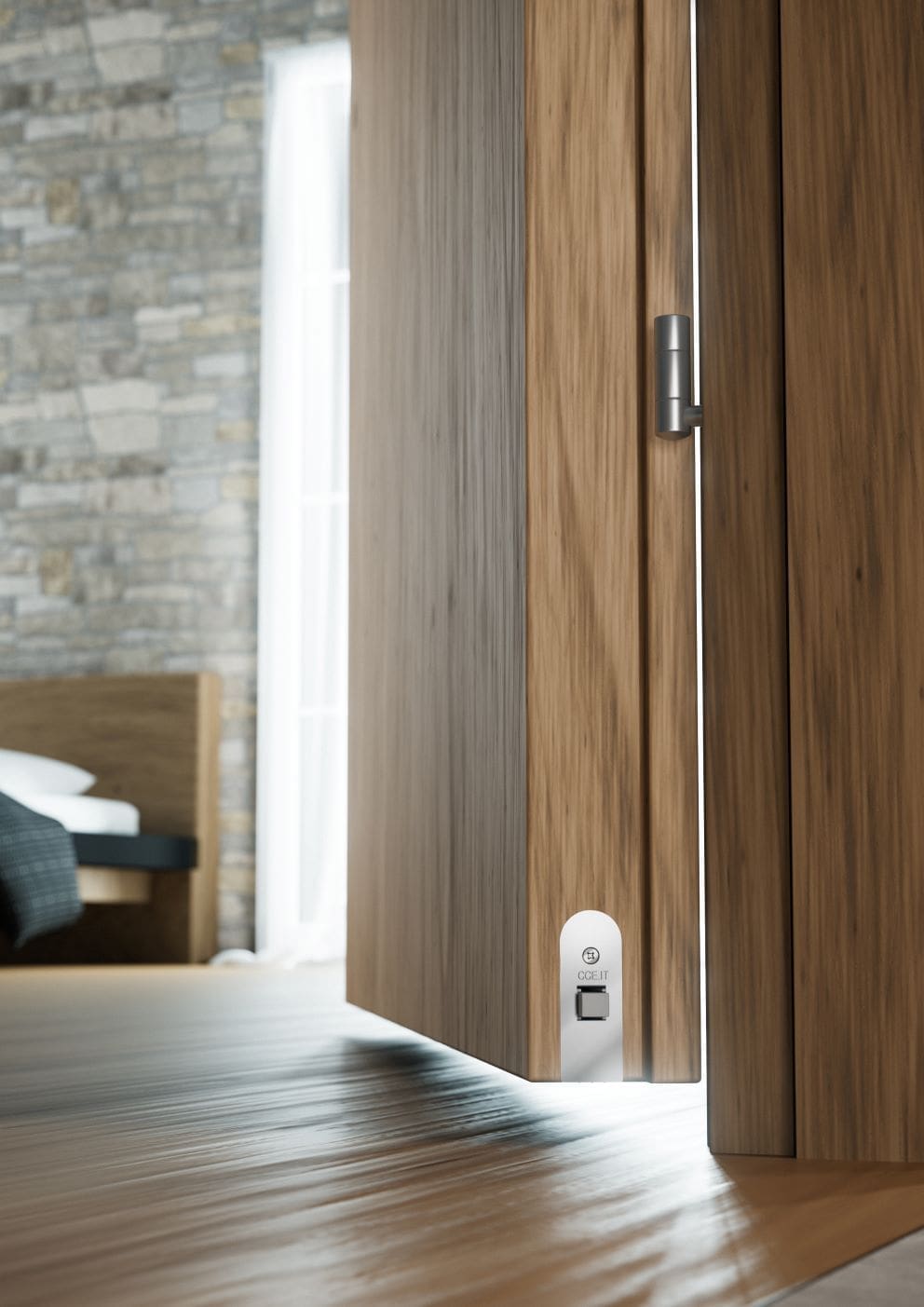

The CCE Superior Automatic Rebated Drop Down Seal 926mm is a high-performance recessed door bottom seal designed to automatically close the gap between the bottom of the door and the floor when the door is closed. It is suitable for use with timber fire, smoke and acoustic doors, providing a combination of fire, smoke and acoustic performance in a discreet recessed design.

926mm (CAN BE TRIMMED UP TO 150MM)
BS EN 1634-1:2014
Certifire CF5995





More Information

The Superior features a high-performance silicone gasket capable of providing acoustic performance of up to 48dB Rw, while its 17mm maximum drop allows it to effectively seal larger gaps beneath the door. The extractable plunger makes adjustment straightforward, helping achieve an effective seal against the floor or threshold.

The seal is Certifire approved and has been fire tested to 60 minutes to BS EN 1634-1:2014, with additional testing to 120 minutes to EN 1634-1:2014+A1:2018 and UL-10C. It has also been tested for smoke leakage to BS EN 1634-3:2004.

The CCE Superior can be installed with or without a threshold plate, and can seal directly down onto carpet, making it a versatile option for a wide range of timber door installations.

The DHP458 is part of Makita's 18V LXT battery platform, making it an excellent choice for tradespeople already invested in the LXT system. Makita also incorporates a battery protection system that helps prevent damage by automatically shutting the tool down when the battery level becomes critically low.

(CAN BE TRIMMED UP TO 150MM)

01

Length

926mm (CAN BE TRIMMED UP TO 150MM)

02

Maximum Drop

17mm

03

Acoustic Rating

Up to 48dB Rw

04

Fire Rating

Up to 60 minutes

05

Fire Certification

Certifire CF5995

06

Fire Test

BS EN 1634-1:2014

07

Smoke Test

BS EN 1634-3:2004

08

Suitable For

Fire, smoke and acoustic doors

09

Guarantee

2 years

Technical specifications

BrandCCE
Product CodeCCE-SUPERIOR60-826
Product TypeDrop Seal
Fire TestBS EN 1634-1:2014
InstallationRebated / recessed

Media

Product videos

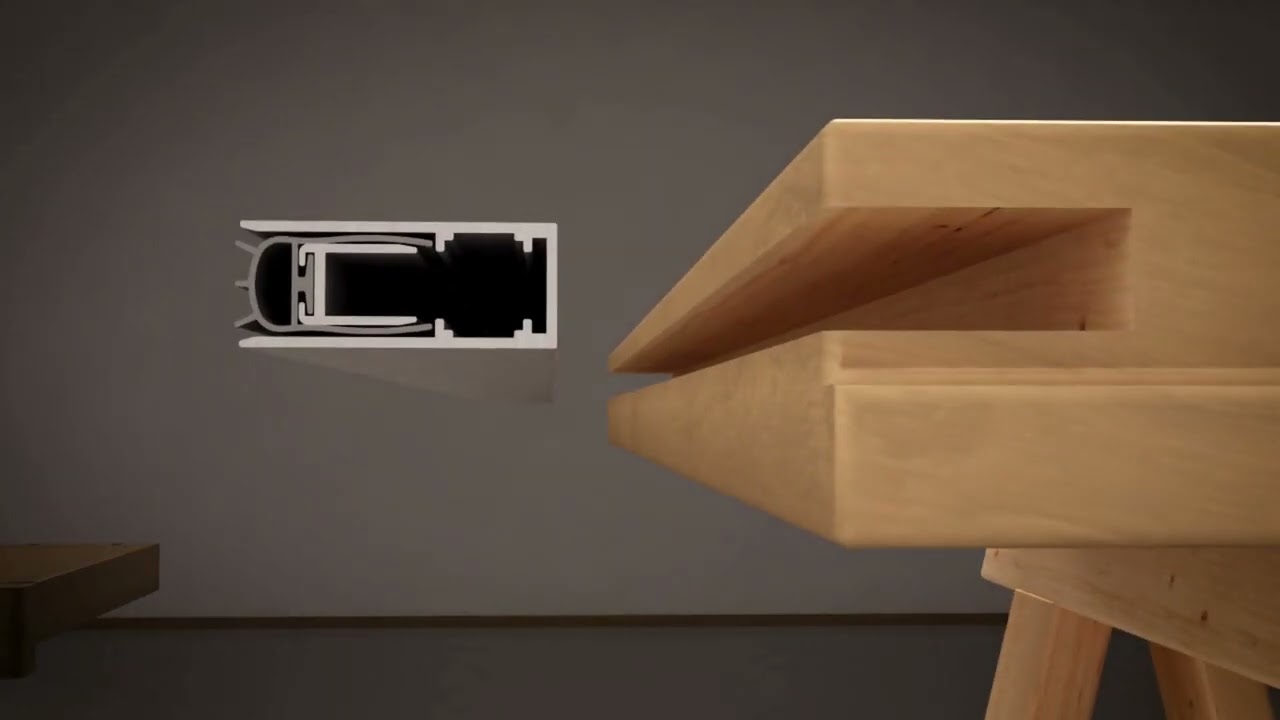

How to Install the CCE Superior Automatic Drop Down Seal



Documentation

Datasheets & downloads

Full documentation for the product can be downloaded in this section, including detailed Brochure page

PDF
Installation Guide

Installation Guide

CCE SUPERIOR INSTALLATION GUIDE

PDF
Datasheet

Acoustic Test Report

CCE SUPERIOR IFT ACOUSTIC TEST REPORT

PDF
Datasheet

Smoke Leakage Test Report

CCE SUPERIOR (TS21) SMOKE LEAKAGE TEST REPORT

PDF
Certificate

Certifire CF 5995 Certificate

CCE SUPERIOR 60 DROP SEAL CERTIFIRE CERTIFICATE CF 5995

Length (mm)926mm
ManufacturerCCE
